TREFI® Tub - the Copper Tube
BRIEF OVERVIEW: THE ADVANTAGES OF COPPER TUBES
- Wide range of applications
- Bactericidal, fungicidal and algicidal effect
- Easy to install
- Low coefficient of expansion
- Excellent thermal conductivity
- Low pressure loss
- High mechanical stability
- Oxygen impermeability
- Immune to ageing
- Aesthetic
- Recyclable
TECHNICAL DATA
Alloy
Dimensions and tolerances
Linear thermal expansion coefficient
Thermal conductivity
Residual carbon on the internal walls
Absolutely gas-tight and UV-resistant
VALUES
Cu DHP - CW024A
acc. to EN 1057
0.0166 mm/m.°C
at 20°C = 364 W/m.°C
Standard NF EN1057
RANGE OF TREFI® TUB PRODUCTS
APPLICATIONS
Straight lengths
For all household installation applications
(drinking water, heating, gas, liquid gas, oil, rainwater, solar systems, sprinklers, fire extinguishing water)

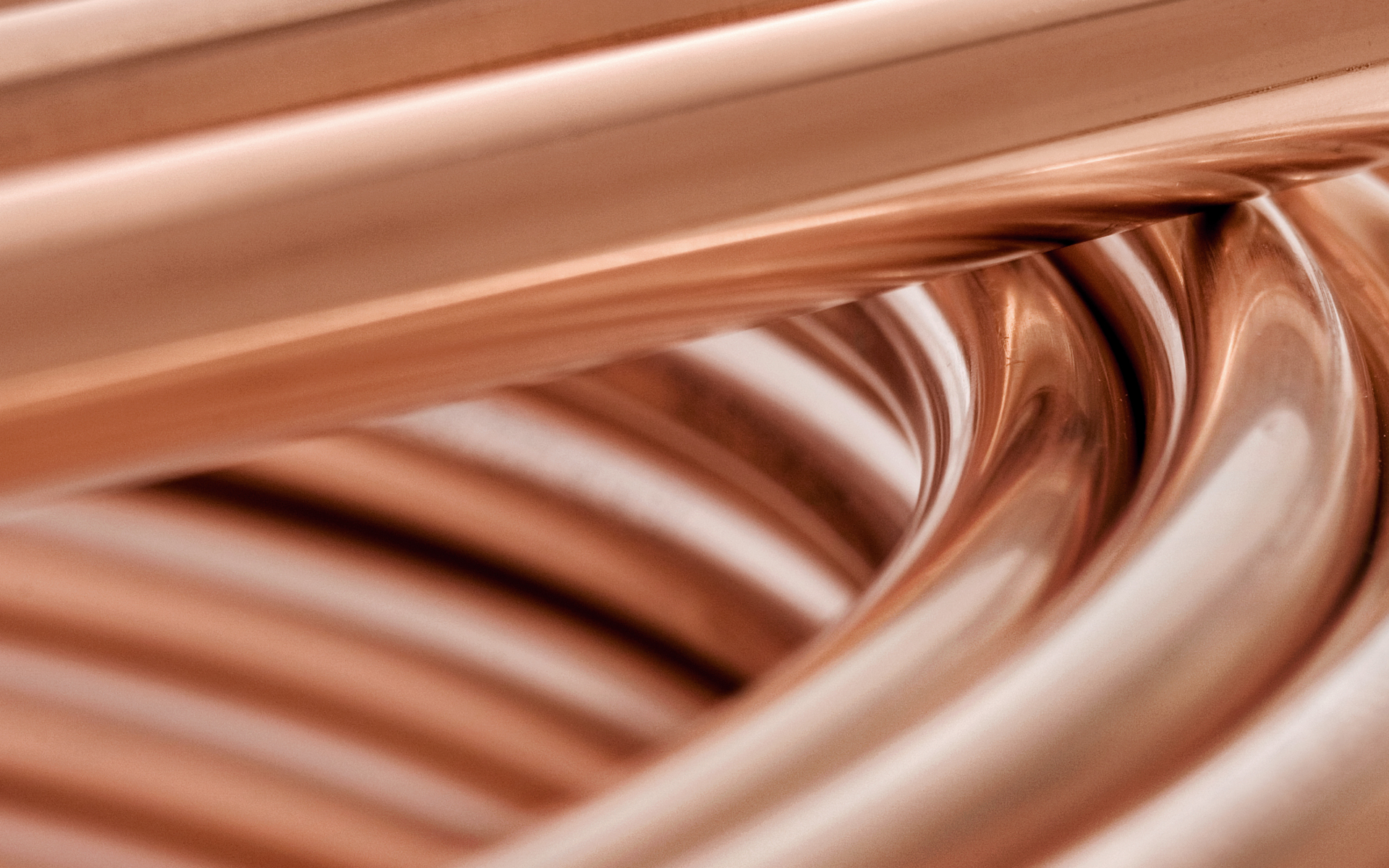

Coils
For all household installation applications
(drinking water, heating, gas, liquid gas, oil, rainwater, solar systems, sprinklers, fire extinguishing water)



DOWNLOADS

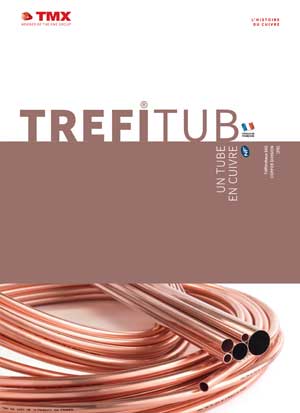

TREFITUB - UN TUBE EN CUIVRE
